DIMENSIONS
CREATIVE USE OF SPACE.
Your perfect MINI is just a few clicks away, but knowing the exact dimensions of your car wherever you live and drive can be very helpful.

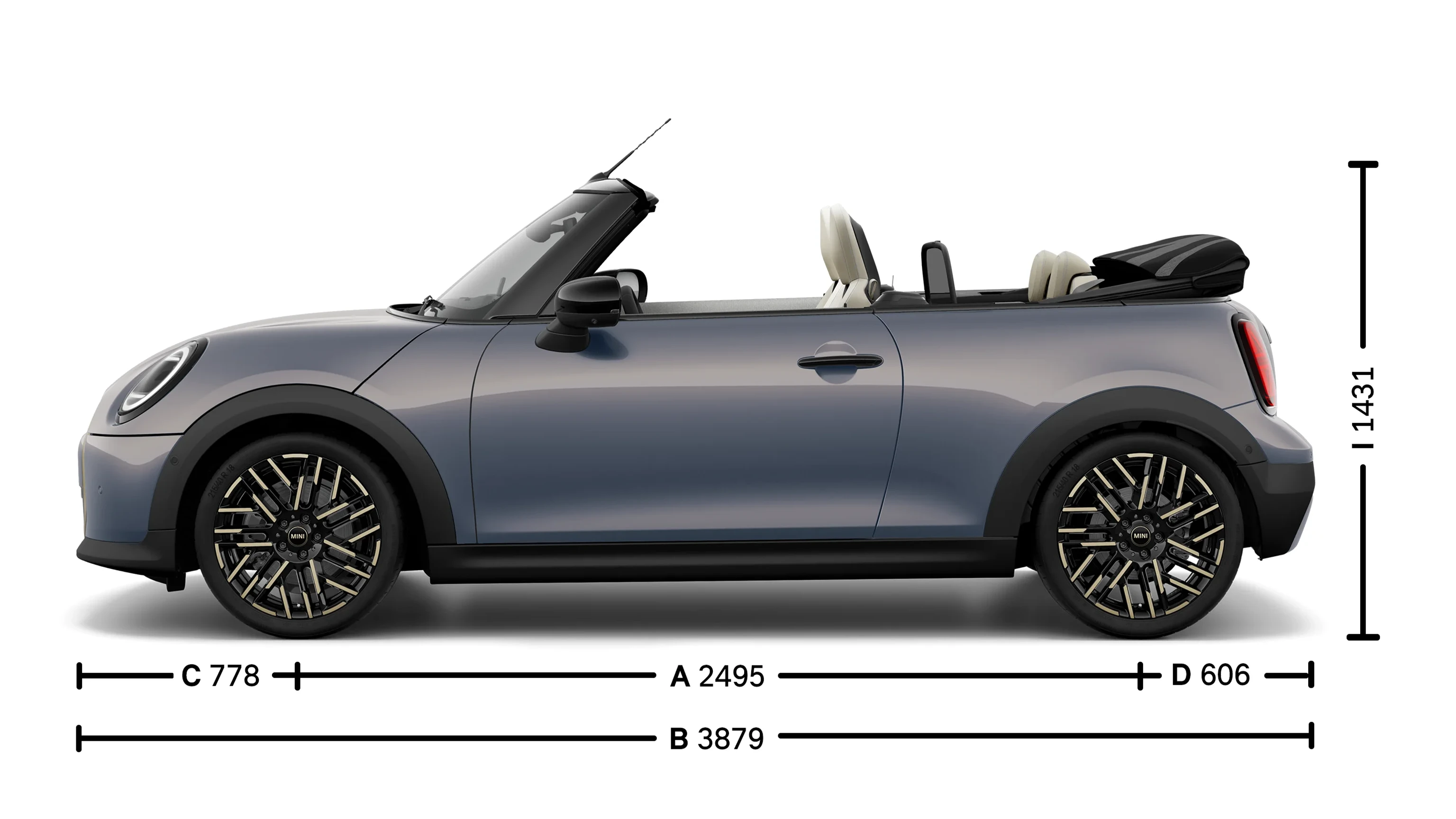

EXTERIOR.
| (A) Wheelbase | 2,495 mm |
|
(B) Vehicle length |
3,879 mm |
|
(C) Overhang length, front |
778 mm |
|
(D) Overhang length, rear |
606 mm |
|

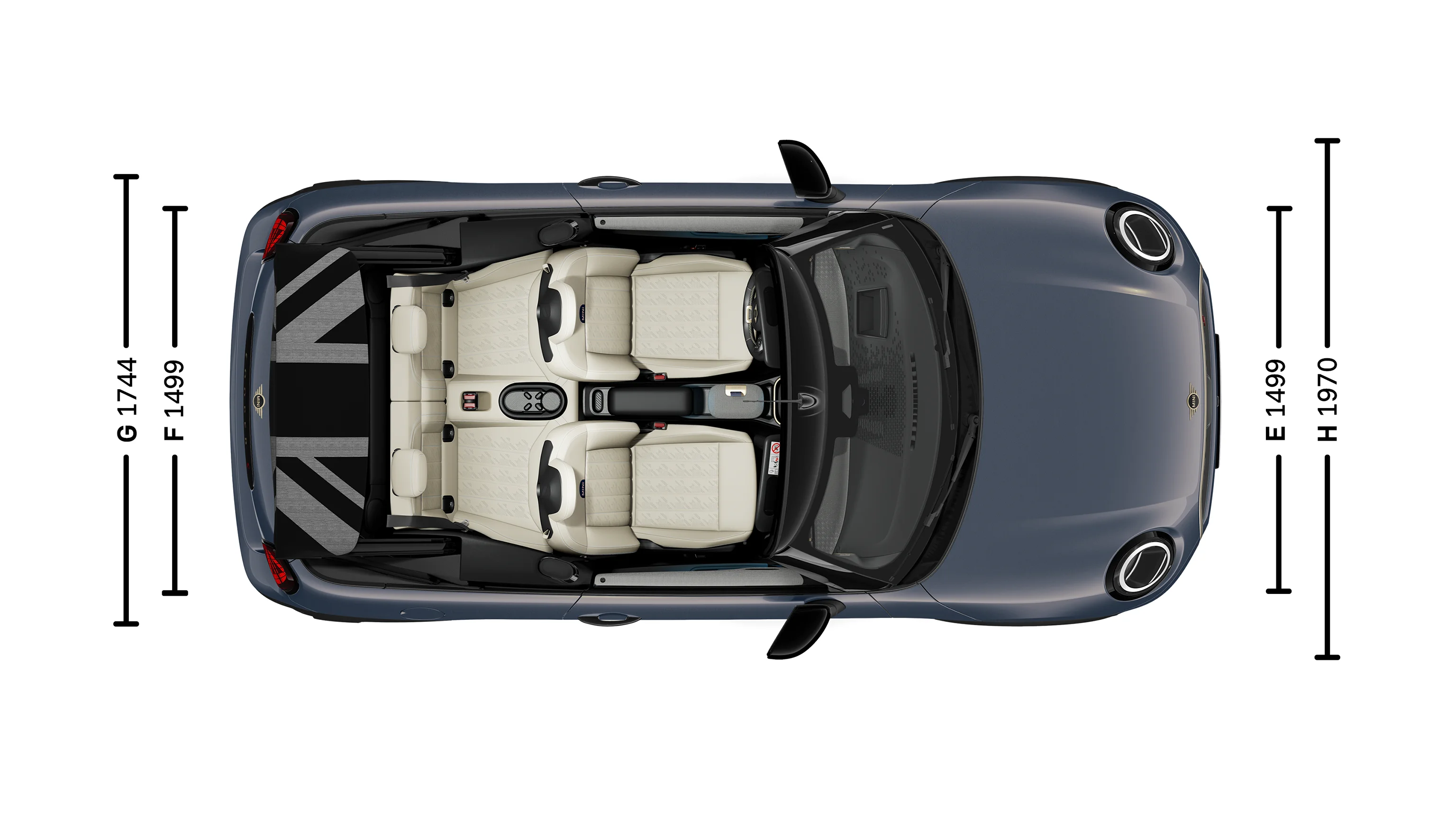

(E) Track width, front |
1,499 mm |
|
(F) Track width, rear |
1,499 mm |
|
(G) Vehicle width |
1,744 mm |
|
(H) Vehicle width including external mirrors |
1,970 mm |
|
(I) Vehicle height (with standard installed parts) |
1,431 mm |
|
Turning circle diameter |
11.1 m |
INTERIOR.
| Effective leg room, front |
1,051 mm |
|
Effective leg room, rear (design position) |
806 mm |
|
Shoulder room, front |
1,301 mm |
|
Shoulder room, rear |
1,014 mm |
|
Elbow room, front |
1,365 mm |
|
Elbow room, rear |
1,094 mm |
|
Head room normal roof, front (com. value) |
1,010 mm |
|
Head room normal roof, rear (com. value) |
990 mm |
TRUNK.
|
Luggage compartment floor length (2nd seat row) |
542 mm |
|
Smallest loading opening |
231 mm |
|
Largest luggage compartment width |
850 mm |
|
Smallest luggage compartment width |
734 mm |
|
Width of tailgate - top |
867 mm |
|
Width of tailgate - bottom |
837 mm |
|
Height of loading opening |
301 mm |
|
Luggage compartment height |
598 mm |
|
Loading edge height |
729 mm |
