DIMENSIONS
GET THE MEASURE OF IT ALL.
Your perfect MINI is just a few clicks away, but knowing the exact dimensions of your car when you’re living and driving in the city can be very helpful.

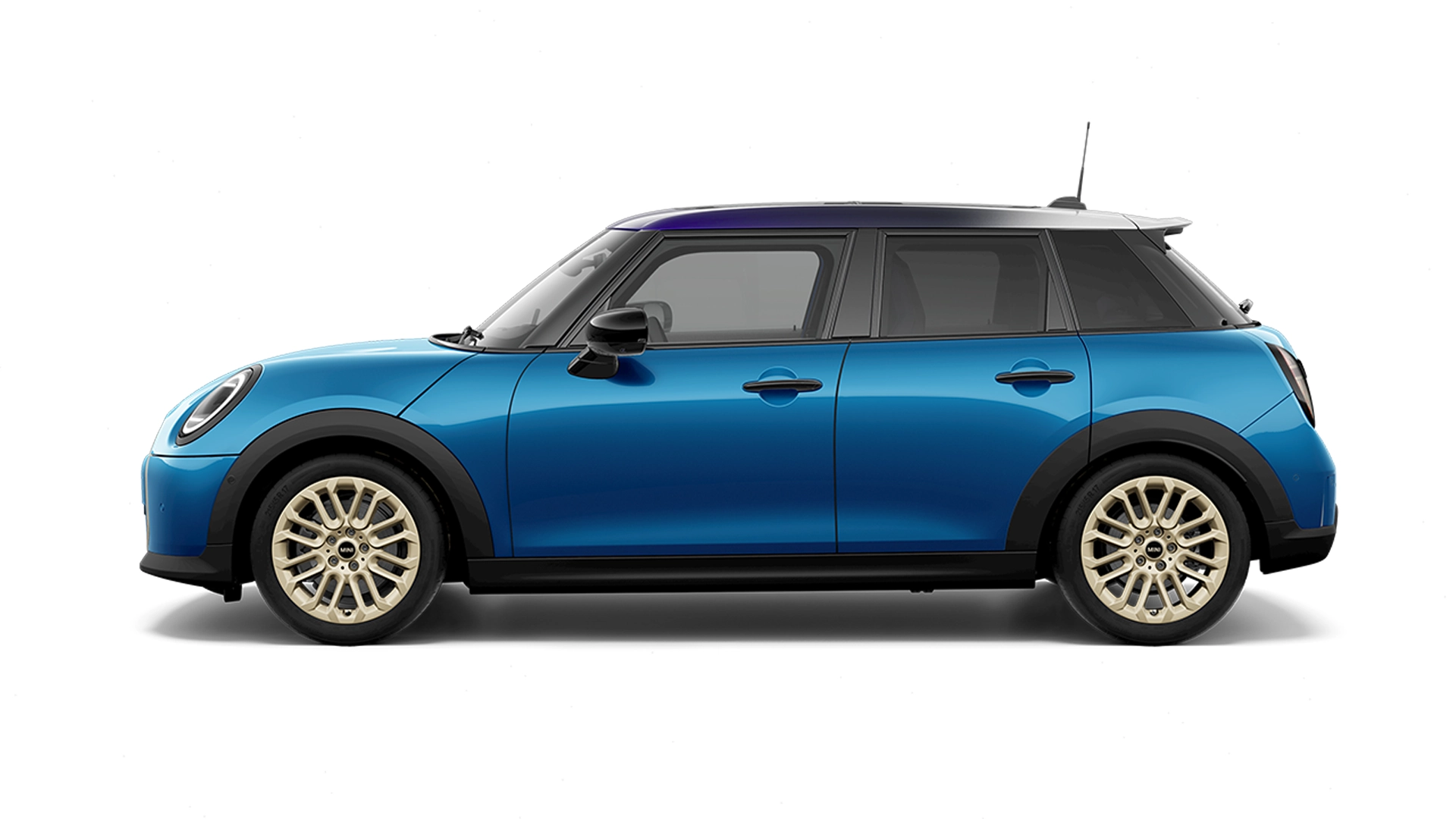

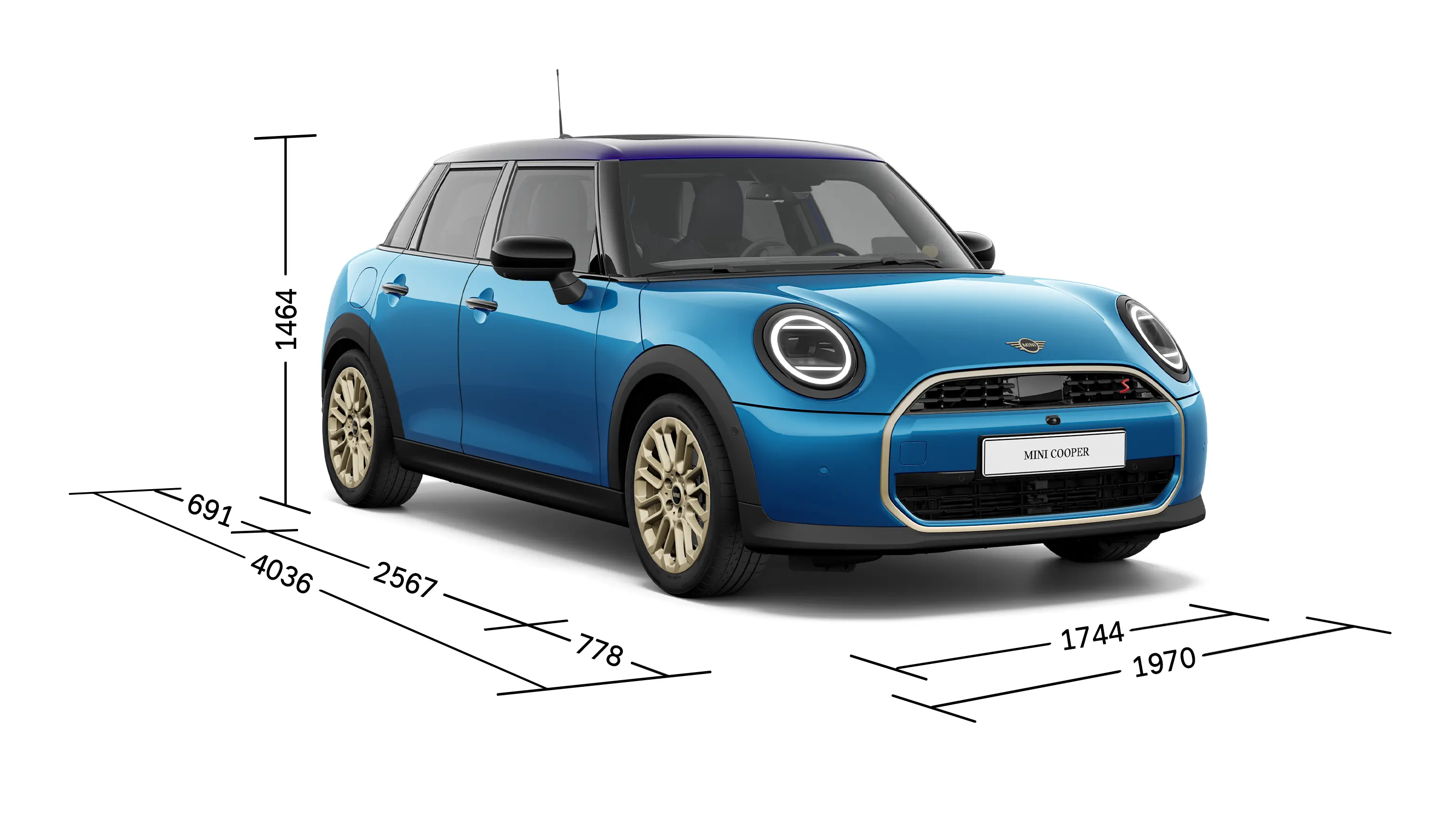

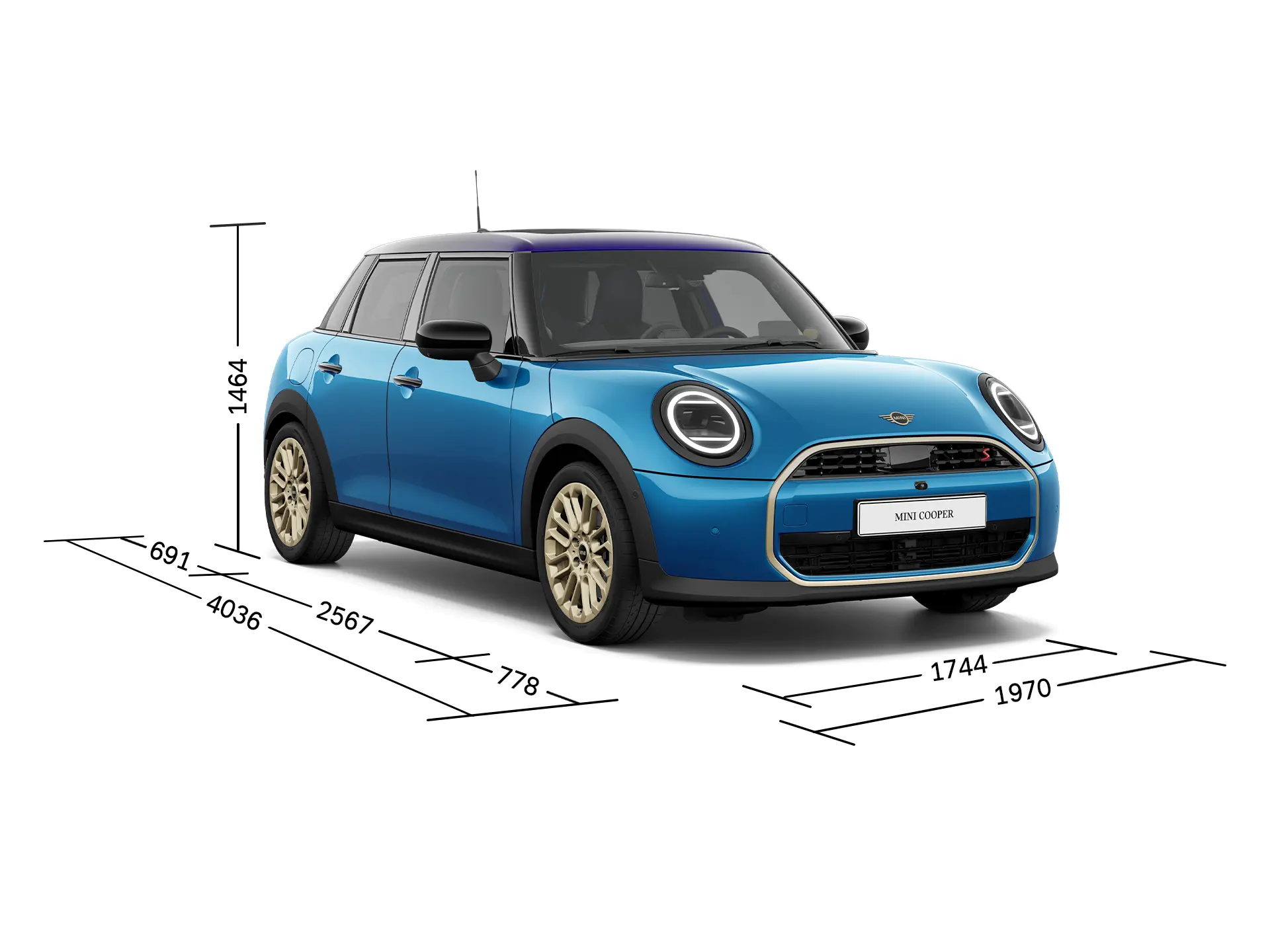

EXTERIOR.
| (A) Wheelbase | 2,567 mm |
|
(B) Vehicle length |
4,036 mm |
|
(C) Overhang length, front |
778 mm |
|
(D) Overhang length, rear |
691 mm |
|
(E) Track width, front |
1,501 mm |
|
(F) Track width, rear |
1,501 mm |
|
(G) Vehicle width |
1,744 mm |
|
(H) Vehicle width included external mirrors |
1,970 mm |
|
(I) Vehicle height (with standard installed parts) |
1,464 mm |
|

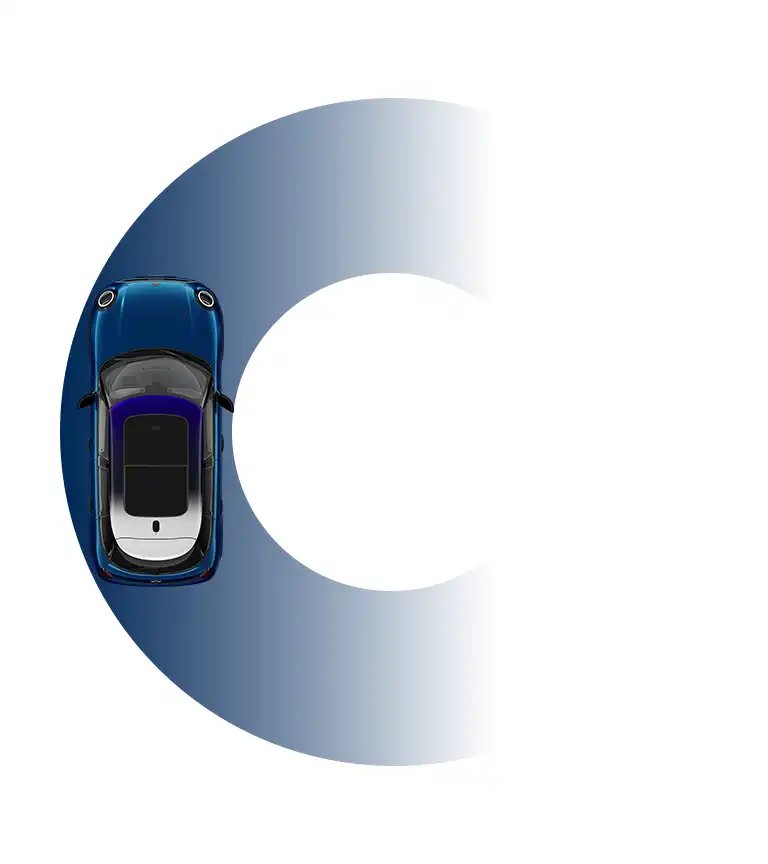

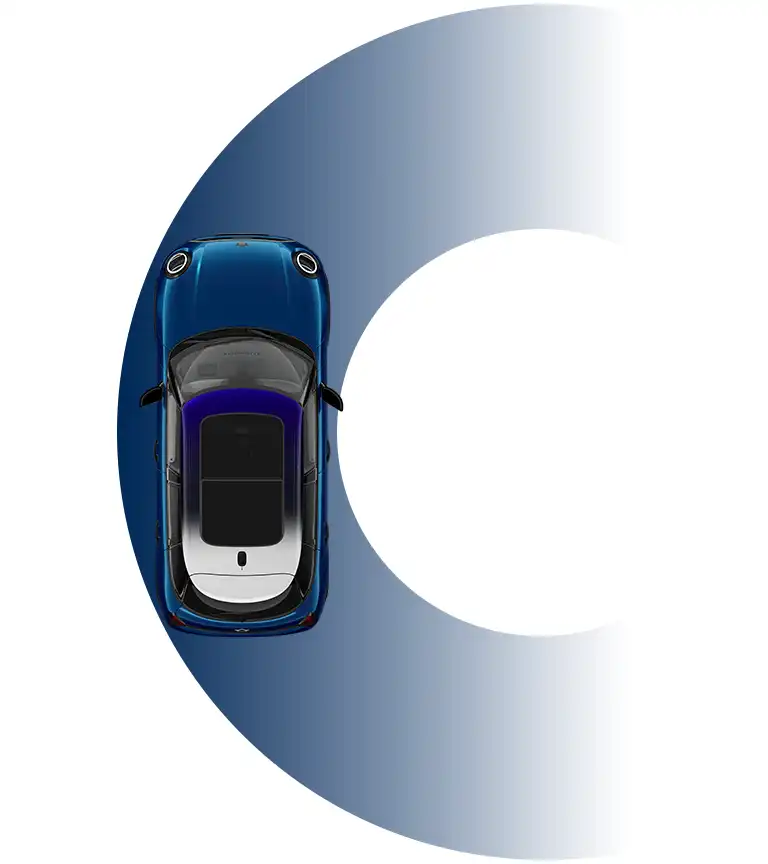

Turning circle diameter |
11,4 m |

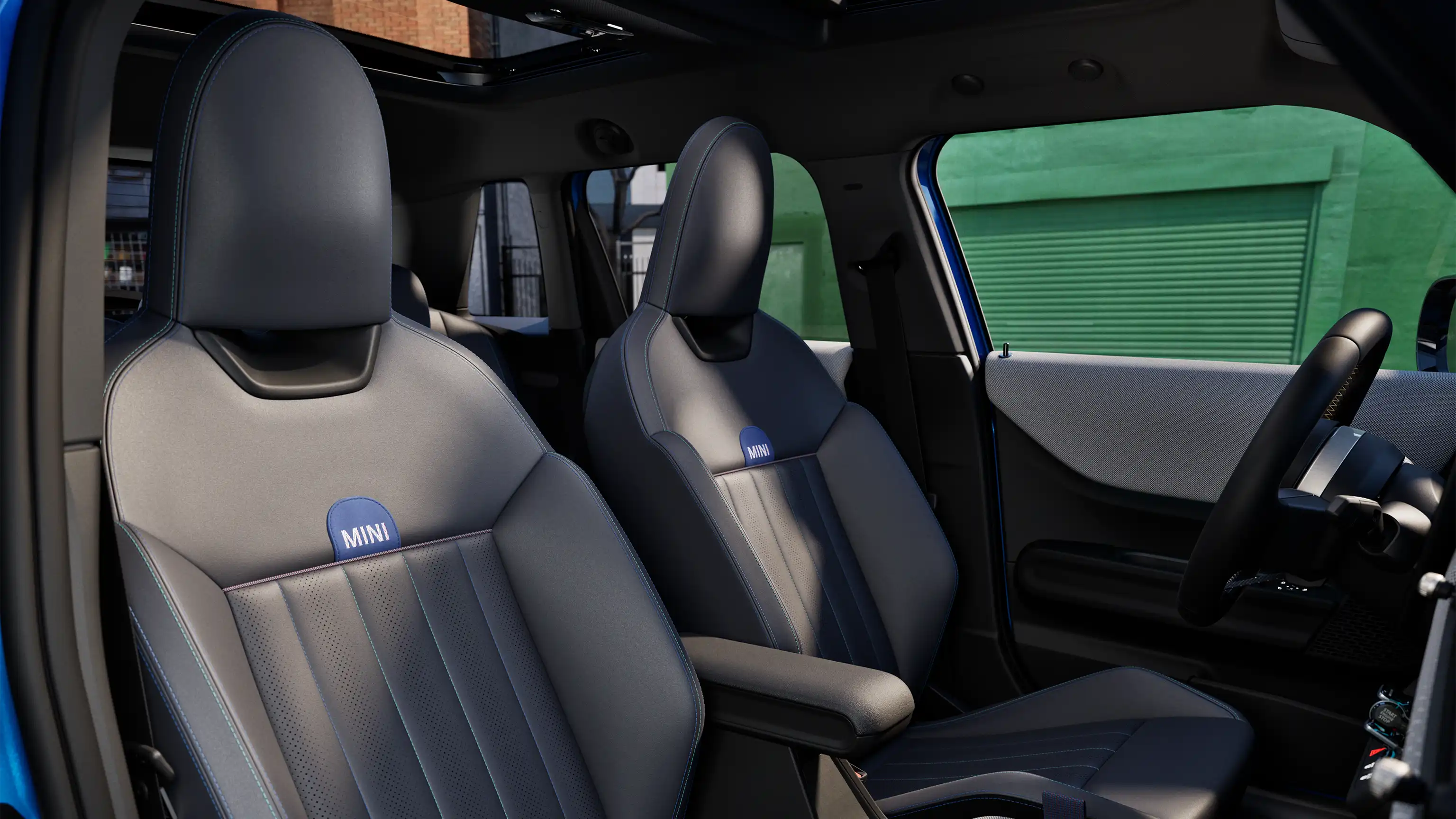

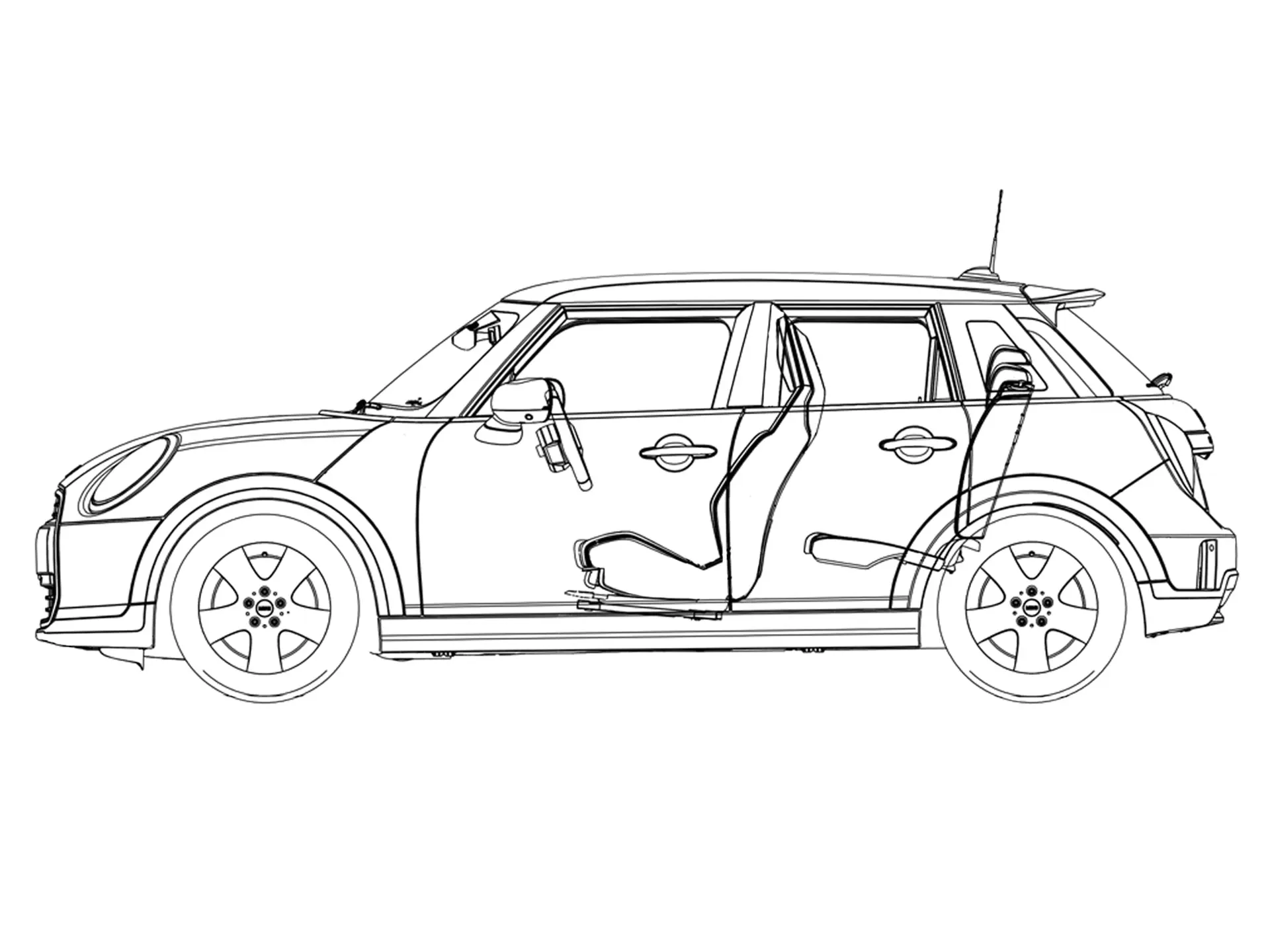

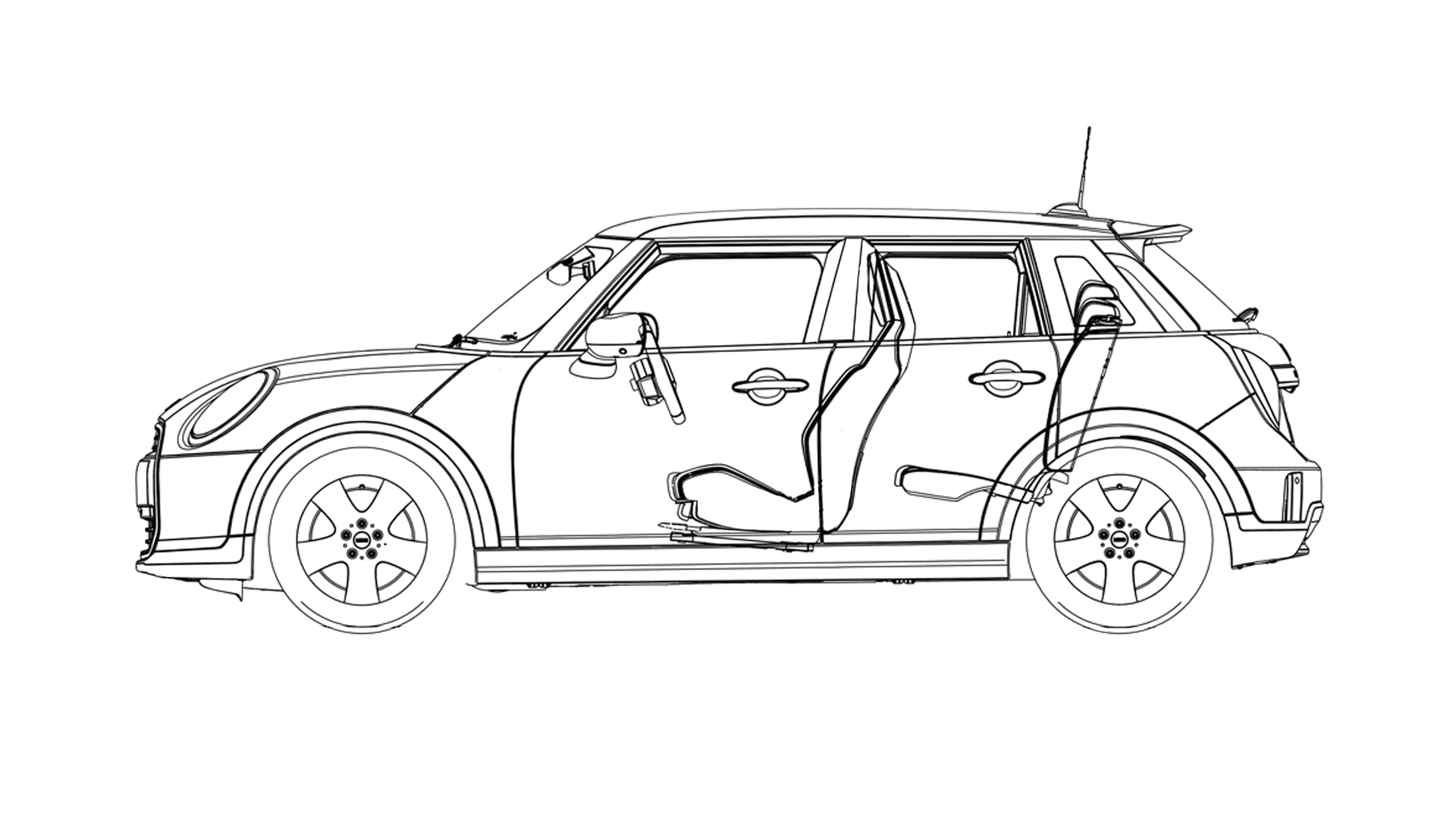

INTERIOR.
| Effective leg room, front |
1,052 mm |
|
Effective leg room, rear (design position) |
821 mm |
|
Shoulder room, front |
1,301 mm |
|
Shoulder room, rear |
1,264 mm |
|
Elbow room, front |
1,341 mm |
|
Elbow room, rear |
1,328 mm |
|

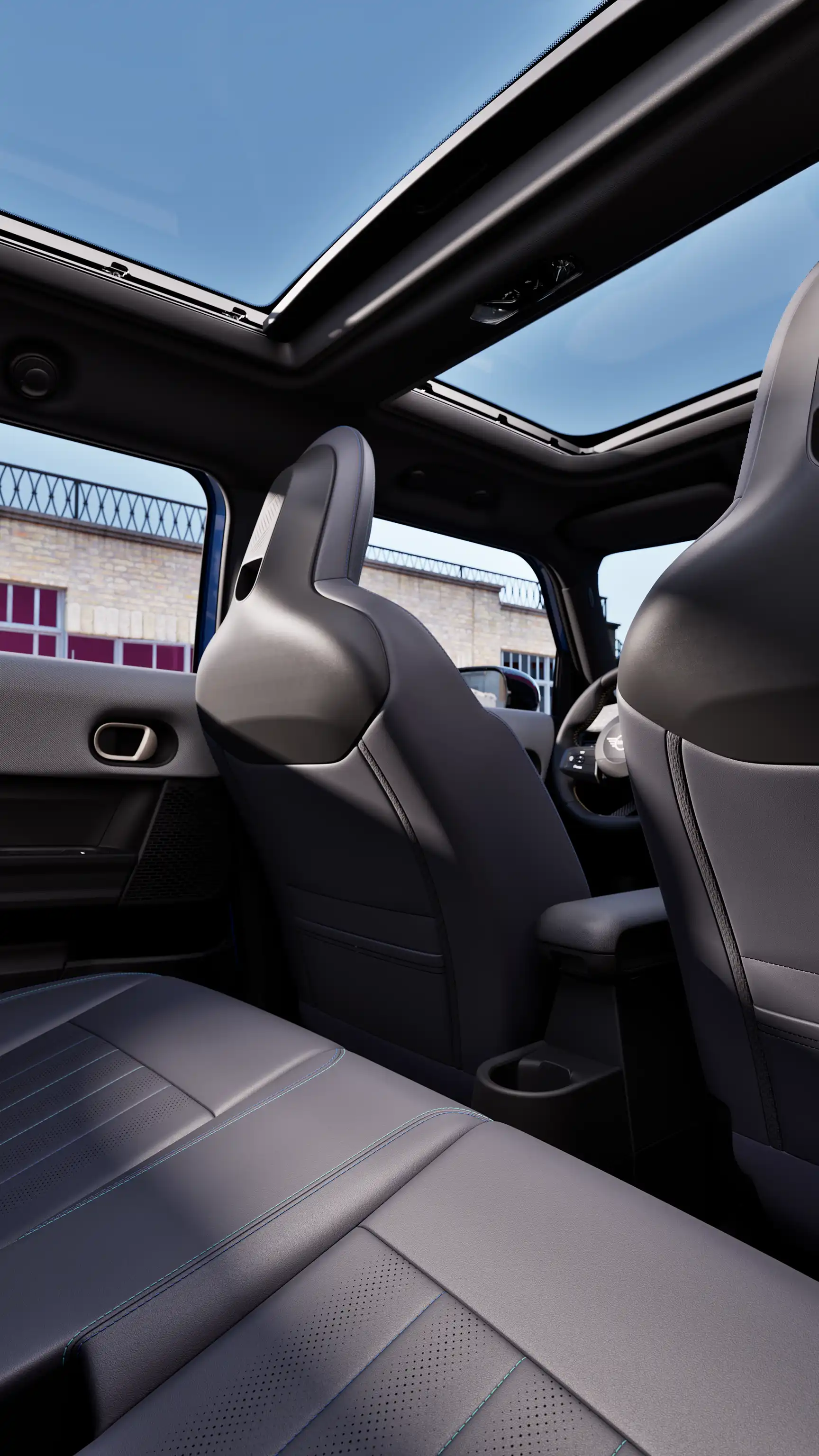

Head room panoramic glass sunroof, front |
981 mm |
|
Head room panoramic glass sunroof, rear |
920 mm |
|
Head room normal roof, front (com. value) |
1,012 mm |
|
Head room normal roof, rear (com. value) |
953 mm |

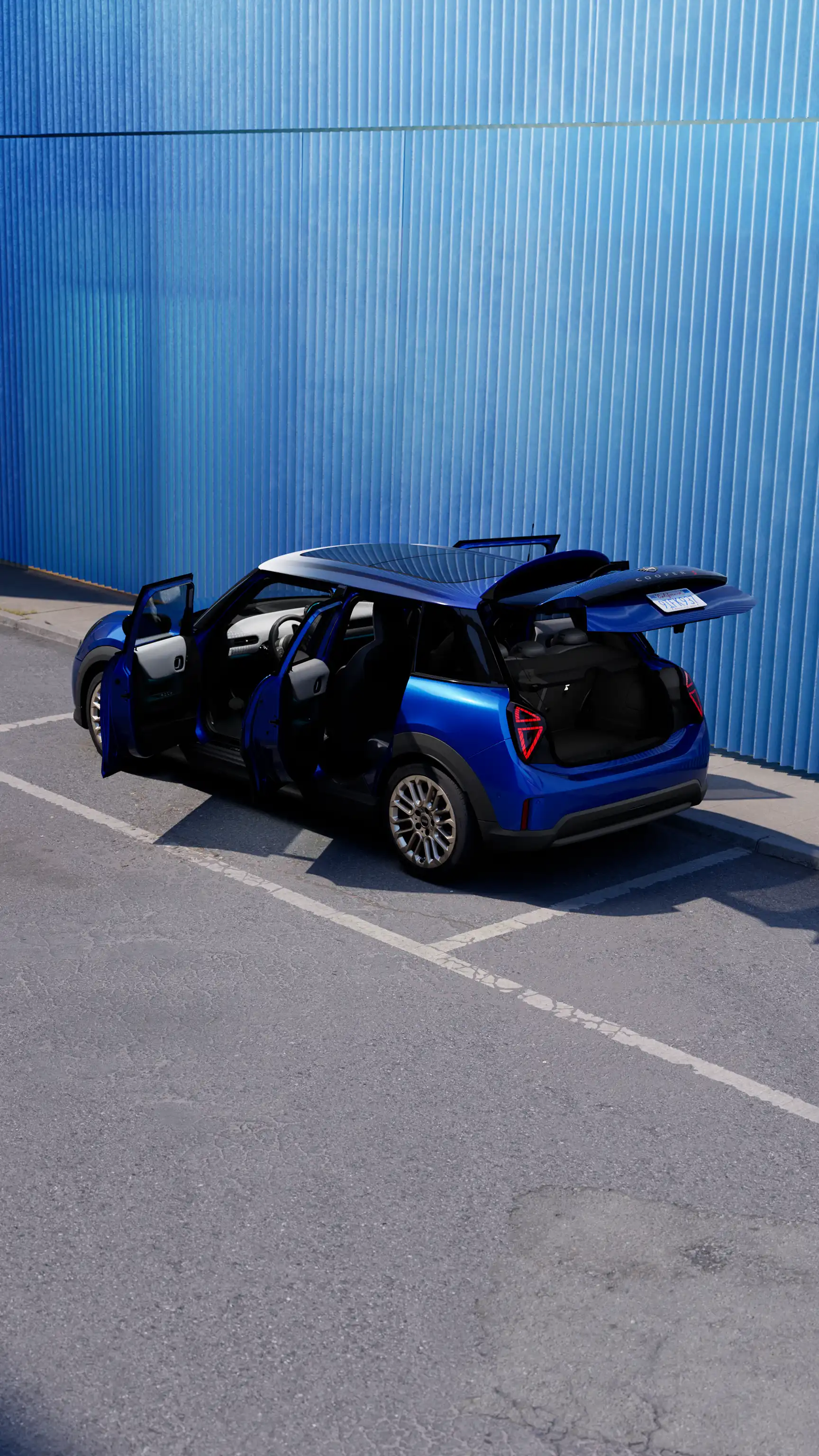

TRUNK.
|
Luggage compartment floor length (2nd seat row) |
577 mm |
|
Smallest loading opening |
755 mm |
|
Largest luggage compartment width |
993 mm |
|
Smallest luggage compartment width |
963 mm |
|
Width of tailgate - top |
833 mm |
|
Width of tailgate - bottom |
892 mm |
|
Height of loading opening |
633 mm |
|
Luggage compartment height |
444 mm |
|
Loading edge height |
646 mm |
